USB-FC

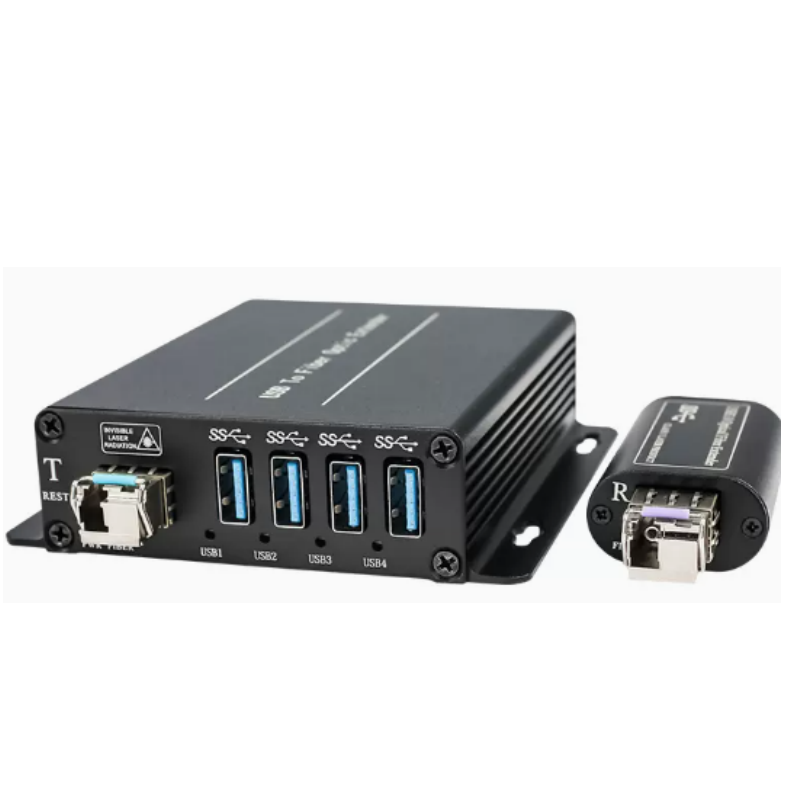

USB3.1 Gen 1 optical transceiver adopts optical fiber conversion technology to realize optical fiber transmission of USB3.0 signal. It is convenient for users to transmit USB3.0 signals over a long distance. The single-mode or multi-mode optical fiber data transmission distance above OM3 is 300 m, and the image transmission distance is 100m. This product is only used for USB3.0 products, and is not compatible with USB2.0 and USB1.1. The host side uses a compact mini package, which can be directly plugged into the USB port, and the device side has a built-in 4-port USB3.0 hub. This product is plug and play, no need to install the driver. This product uses the optical fiber transmission, has the very good anti-electromagnetic interference ability.

Categories: ,
Description

Compatible with USB3.0, not compatible with USB2.0/1.1
The data transmission distance of the storage device is up to 300 meters;
The maximum distance of USB3.0 image transmission is 100m.
Maximum transmission speed of 5Gbps;
1xLC single-mode fiber transmission;
Adopt USB3.0 to optical fiber technology, high bandwidth without delay;
The host end adopts small package, plug and play, free of equipment installation;
There is no need to install the driver;
Support hot plug;
The device is equipped with 4-port HUB and supports all USB3.0 peripherals;
Support the use of KINECT.
The host end does not need an external power supply, and the equipment end is powered by an external DC + 12V power supply;
Optical fiber transmission, strong anti-interference capability

Note: All relevant information such as pictures, parameters and data provided on the website are for reference only. Please refer to the actual product received for specific specifications, appearance and performance.
Please contact our sales team for the latest details.
