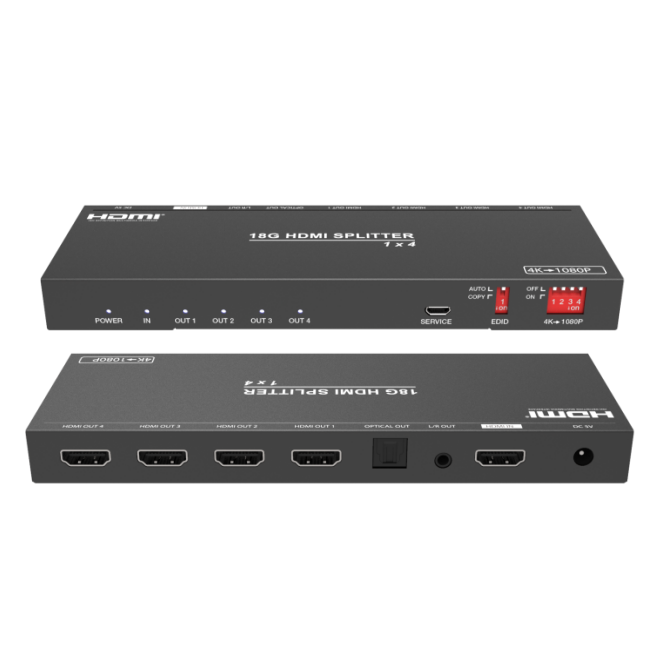

HD0104

The HD0104 is a 1-input, 4-output distribution amplifier for HDMI signals with resolutions up to 4K × 2K @ 60Hz. They support the HDMI 2.0b parameter standard, including data rates up to 18 Gbps, color depths up to 8 bits (4K) or 12 bits (1080p), 3D, HD lossless audio formats. This HDCP 1.4-compliant distribution amplifier features an EDID manager and a key manager to maintain continuous EDID communication between connected devices and ensure simultaneous distribution of HDCP-encrypted source content.

Category:
Description

HDMI standard: HDMI 2.0b (compatible with DVI 1.0) HDCP standard: HDCP 2.2
Maximum video bandwidth: 18 Gbps
Support 1-channel HDMI digital signal input and 4-channel HDMI digital signal output.
Maximum video resolution: 4Kx2K @ 60Hz 24bit YCbCr 4:4:4
Built-in signal equalization, signal recovery and signal amplification circuit
Maximum HDMI cable length: 4Kx2K @ 60Hz: 10m
Support HDR, HDR10 + and Dolby Vision, HLG function
Automatic color depth management, supporting color depths of 30 bit, 36 bit and 48 bit
Audio support DTS-HD/Dolby-true-HD/LPCM

Note: All relevant information such as pictures, parameters and data provided on the website are for reference only. Please refer to the actual product received for specific specifications, appearance and performance.
Please contact our sales team for the latest details.
