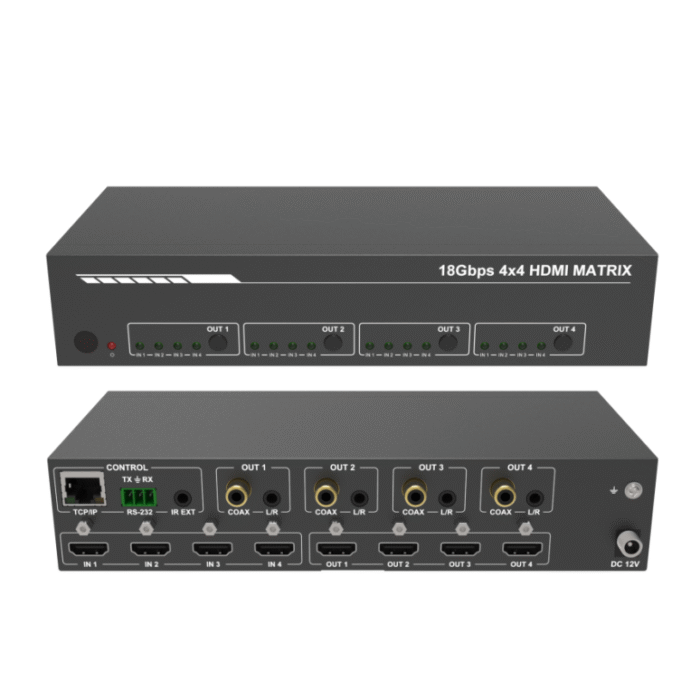

HD0404-WEB

HD0404-WEB is a 4-in-4-out HDMI matrix switcher, using pure hardware high-speed matrix switching chip, high integration and more stable system. The input resolution and the output resolution are completely straight-through, and the signal has no compression, no loss and no delay. For video signals with resolutions up to 4Kx2K @ 60Hz, YCbCr sampling 4:4:4 chrominance. They support the HDMI 2.0b parameter standard, including data rates up to 18 Gbps, color depths up to 12 bits, 3D, HD lossless audio formats, and CEC. The HDCP 2.2-compliant matrix switcher uses an EDID manager and key manager to maintain continuous EDID communication between connected devices and ensure arbitrary distribution of HDCP-encrypted source content, as well as built-in HDCP processing logic to avoid HDCP compatibility issues.

Category:
Description

HDMI 2.0b, HDCP 2.2 compliant
Maximum HDMI bandwidth: 18 Gbps
Video resolution up to 4K60 YCbCr 4:4:4 24bit
Support HDR, HDR10 +, Dolby Vision, HLG function
Audio up to LPCM 7.1CH, Dolby TrueHD, DTS-HD Master
Input resolution and output resolution are directly connected, and the signal has no compression, no loss and no delay.
Built-in signal equalization, signal recovery and signal amplification circuit
Standard HDMI cable 4K60 front and rear 5m, 4K30 front and rear 10m, 1080p60 front and rear 15m
Built-in HDCP processing logic to avoid HDCP compatibility issues
Supports 4 HDMI inputs, 4 HDMI outputs
Support for simultaneous display of any signal source on multiple displays
Support HDMI display to view any HDMI signal source at any time
opt pure hardware high-speed matrix switching chip, high integration and more stable system
Quick switching function, no need to wait for drawing
All 4 outputs support automatic or manual frame reduction function (4K to 2K), which can meet the mixed use of 4K and 2K devices.
4 channels of output all support audio de-embedding function
Coaxial audio de-embedding supports 5.1CH at most, and coaxial audio and video signals are output synchronously.
Analog audio de-embedding supports LPCM 2CH, synchronous output of analog audio and video signals
Support ARC (Audio Return) function, ARC audio can be output through the audio de-embedding coaxial port
Intelligent EDID management, support EDID COPY or built-in EDID
Supports panel keys, IR, RS-232, TCP/IP and Web control
Fanless design, low heat, no noise, stable performance, stable work in harsh environment
Adopt aviation spiral power interface
Reasonable design, easy to install

Note: All relevant information such as pictures, parameters and data provided on the website are for reference only. Please refer to the actual product received for specific specifications, appearance and performance.
Please contact our sales team for the latest details.
