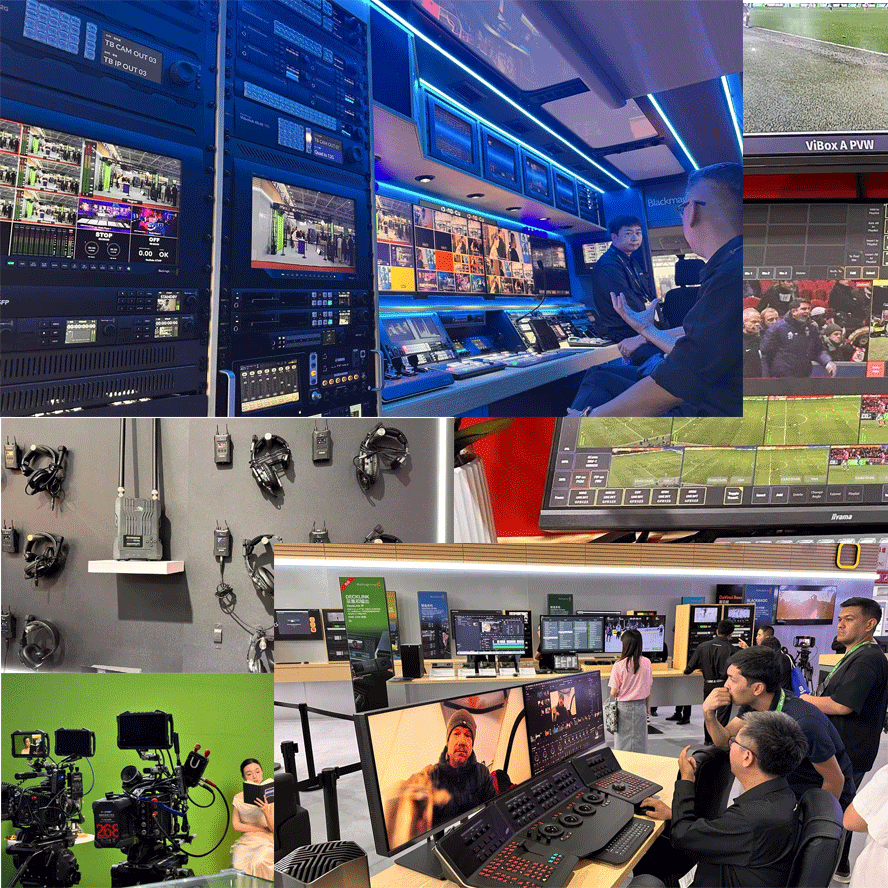

Beijing BIRTV 2025-Exhibitions
Overview of the 32nd Beijing International Radio, Film & TV Exhibition (BIRTV 2025)
The 32nd Beijing International ...
26
May
2025 Audio&Lighting Exhibitions
Overview of 2025 Guangzhou Audio and Lighting Exhibitions
I. Details of GETshow 2025
Exhibition Time and Venue...
05
May
Beijing Infocom 2025-Exhibitions
Introduction to Beijing InfoComm Exhibition 2025
The 2025 Beijing InfoComm Exhibition was held grandly at the Beijing ...
Key Technologies

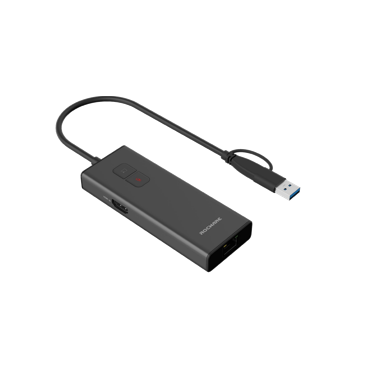

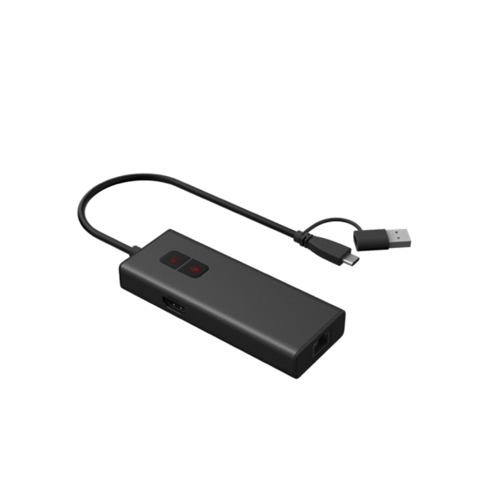

BYOD
AVoIP
Dante
HDbaseT
NDI
Wireless screen
MAIN PRODUCTS
HD0404 HDMI Matrix Switch
HD0404 is a highly integrated multi-functional 4-in-4-out HDMI matrix switcher, using pure hardware high-speed matrix switching chip, with high integration and more stable system. The input resolution and the output resolution are completely straight-through, and the signal has no compression, no loss and no delay. For video signals with resolutions up to 4Kx2K @ 60Hz, YCbCr sampling 4:4:4 chrominance. They support the HDMI 2.0b parameter standard, including data rates up to 18 Gbps, color depths up to 12 bits, 3D, HD lossless audio formats, and CEC. The HDCP 2.2-compliant matrix switcher uses an EDID manager and key manager to maintain continuous EDID communication between connected devices and ensure arbitrary distribution of HDCP-encrypted source content, as well as built-in HDCP processing logic to avoid HDCP compatibility issues.
HD-64H2UA Multi-picture Seamless Switch
The HD-64H2UA is a 4-way switcher for HDMI signals that supports 4Kx2K @ 60Hz video signals at data rates up to 18 Gbps and supports HD lossless audio formats. The input supports the automatic identification function, and the input resolution and the output resolution are completely straight through, and the signal has no compression, no loss and no delay. HD-64H2UA supports HDR, HDR10 + and Dolby Vision, HLG functions, and can automatically adjust the color depth according to the EDID information of the display device to prevent color compatibility problems between the signal source and the display device.
HD0110 16-Output HDMI 4K Distribution Amplifier
The HD0110 is a 1-input, 16-output distribution amplifier for HDMI signals with resolutions up to 4K × 2K @ 60Hz. They support data rates up to 18 Gbps, 3D and HD lossless audio formats, and feature easy-to-integrate features such as automatic input signal equalization, input signal restoration, output signal amplification, and automatic color depth management. Its EDID Manager and Key Manager technologies maintain continuous EDID communication between connected devices and ensure simultaneous distribution of HDCP-encrypted source content.
USB-RJ45 USB 2.0 Extender
The USB-RJ45 is a USB 2.0 extender that can transmit USB 2.0 signals to 100m through a single Cat 5e/6 network cable. It supports USB 2.0 to 1.0 devices with data rates up to 200 Mbps and is compatible with USB 3.0 devices capable of operating at USB 2.0 data rates. The USB-RJ45 supports USB peripherals such as keyboards, mice, mass storage devices, and network cameras in professional video and audio environments. USB-RJ45 uses the latest USB codec chip, so that it has super USB compatibility, supports various USB interface devices, and can transmit USB camera signals without delay, while providing two-way POC power supply.
8-Output HDMI 4K Distribution Amplifier HD0108
The HD0108 is a 1-input, 8-output distribution amplifier for HDMI signals with resolutions up to 4K × 2K @ 60Hz. They support data rates up to 18 Gbps, 3D and HD lossless audio formats, and feature easy-to-integrate features such as automatic input signal equalization, input signal restoration, output signal amplification, and automatic color depth management. Its EDID Manager and Key Manager technologies maintain continuous EDID communication between connected devices and ensure simultaneous distribution of HDCP-encrypted source content.
HD-BASET30-TX
The HD-BASET30-TX is a 4K 60Hz (4:2:0) HDMI, bidirectional RS − 232, and infrared signal twisted pair transmission device. The HD-BASET30-TXTx converts incoming HDMI, bidirectional RS − 232, and infrared signals into twisted-pair signals that are sent to the HD-BASET30-TXRx receiver over a Cat6, Cat6a, or Cat7 standard twisted-pair cable.
HDMI Matrix Switch HD0404-WEB
HD0404-WEB is a 4-in-4-out HDMI matrix switcher, using pure hardware high-speed matrix switching chip, high integration and more stable system. The input resolution and the output resolution are completely straight-through, and the signal has no compression, no loss and no delay. For video signals with resolutions up to 4Kx2K @ 60Hz, YCbCr sampling 4:4:4 chrominance. They support the HDMI 2.0b parameter standard, including data rates up to 18 Gbps, color depths up to 12 bits, 3D, HD lossless audio formats, and CEC. The HDCP 2.2-compliant matrix switcher uses an EDID manager and key manager to maintain continuous EDID communication between connected devices and ensure arbitrary distribution of HDCP-encrypted source content, as well as built-in HDCP processing logic to avoid HDCP compatibility issues.
