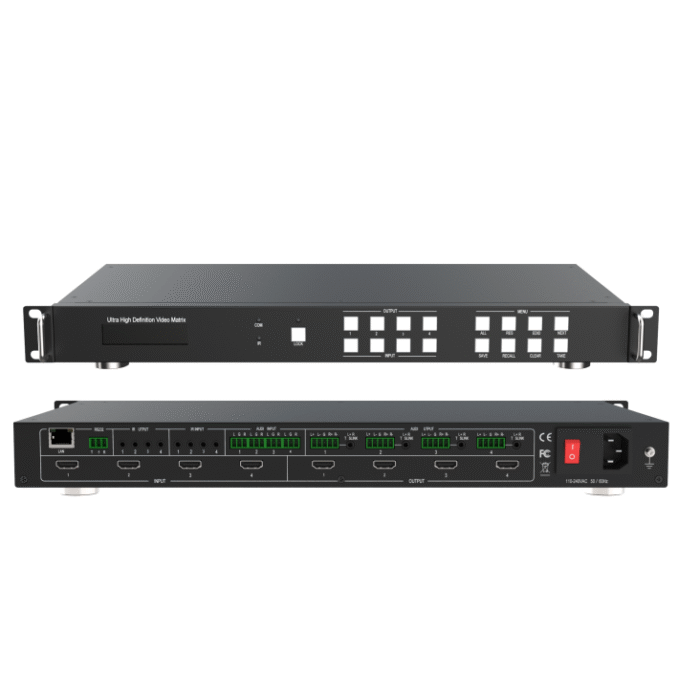

HD0404

HD0404 is a highly integrated multi-functional 4-in-4-out HDMI matrix switcher, using pure hardware high-speed matrix switching chip, with high integration and more stable system. The input resolution and the output resolution are completely straight-through, and the signal has no compression, no loss and no delay. For video signals with resolutions up to 4Kx2K @ 60Hz, YCbCr sampling 4:4:4 chrominance. They support the HDMI 2.0b parameter standard, including data rates up to 18 Gbps, color depths up to 12 bits, 3D, HD lossless audio formats, and CEC. The HDCP 2.2-compliant matrix switcher uses an EDID manager and key manager to maintain continuous EDID communication between connected devices and ensure arbitrary distribution of HDCP-encrypted source content, as well as built-in HDCP processing logic to avoid HDCP compatibility issues.

Category:
Description

HDMI Matrix Switch
HDMI 2.0b, HDCP 2.2 compliant
Maximum HDMI bandwidth: 18 Gbps
Video resolution up to 4K60 YCbCr 4:4:4 24bit
Support a variety of different resolution output to meet the needs of different types of display devices
Support seamless switching, no pause, no tearing, no black screen or flicker in the switching process
With image quality enhancement function, the output image quality can be adjusted.
With video wall function, it supports up to 4 screens to be spliced at will
Audio support up to LPCM, Dolby, DTS-HD 5.1CH
Built-in signal equalization, signal recovery and signal amplification circuit
Standard HDMI cable 4K60 front and rear 5m, 4K30 front and rear 10m, 1080p60 front and rear 15m
Built-in HDCP processing logic to avoid HDCP compatibility issues
Supports 4 HDMI inputs, 4 HDMI outputs
Support for simultaneous display of any signal source on multiple displays
Support HDMI display to view any HDMI signal source at any time
opt pure hardware high-speed matrix switching chip, high integration and more stable system
4 channels of input all support audio embedding function
All 4 outputs support audio de-embedding function
Coaxial audio de-embedding up to 5.1CH, coaxial audio and video signal synchronous output
Analog audio de-embedding supports LPCM 2CH, synchronous output of analog audio and video signals
Support 4×4 audio matrix function, audio signal can be switched independently or synchronously with the signal.
Support 4×4 infrared matrix function, infrared following signal synchronous switching
Front panel LCD display
Intelligent EDID management, support EDID COPY or built-in EDID
Support panel keys, IR, RS-232, TCP/IP, Web and PC software control
Silent fan design, no noise, stable performance, stable work in harsh environment
AC power interface, built-in power module
1U standard design for easy installation

Keywords:HDMI Matrix Switch, 4×4 audio matrix function, 4×4 infrared matrix function
