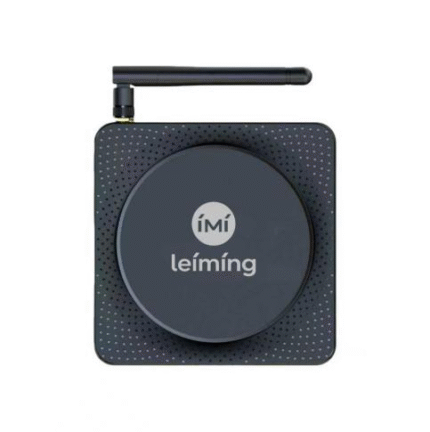

FBox-432B
Back to products
LM-WX11-T
Click to enlarge

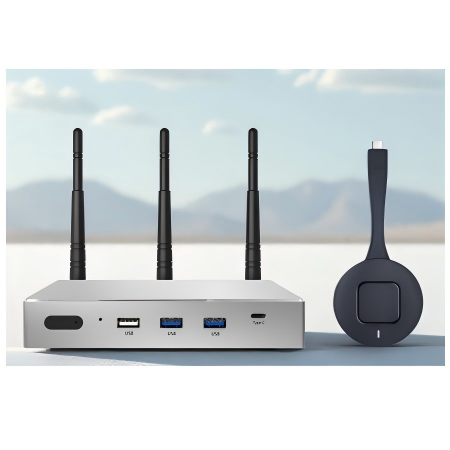

LM-WX11-R

1. The host supports access to USB camera, HDMI camera and USB microphone. With TYPE C screen transmitter and HDMI screen transmitter, the Windows client can realize BYOM function and share the camera and microphone wirelessly on Windows/Mac computers. Support MJPEG/H264/H265 USB camera.
2. Support the display of four signal sources at the same time, and realize the split-screen display of four pictures.
3. Support Miracast, AirPlay, DLNA, Chrome and other screen projection methods. Support screen projection with USB/Type-C/HDMI screen transmitter
4.22. The host supports true 4K point-to-point decoding display of single picture, and supports transmission effect of 1080P for each split-screen picture under double/four pictures. Miracast, Airplay, TYPE C, HDMI and USB all support 4K point-to-point screen transmission.
5. Support the connection of touch screen to realize reverse control
6. Provide Windows, Mac, Linux computer client, Android, iOS mobile client. In addition to the screen transmission function, the client can also display the content of the host in reverse, and touch control, support mouse reverse control, and support 10-point touch reverse control.
7. Built-in writing software and annotation software can annotate the screen in real time, and save local, U disk or mobile phone QR Code to share a variety of options. Both writing and annotating have writing acceleration features.
8. Support screen projection across network segments
9. Support centralized control deployment and management

Category:
Description






LM-WX11 Wireless Screen Transmitter – 产品介绍


LM-WX11 Wireless Screen Transmitter

Product Overview

LM-WX11 is a high-performance all-in-one wireless screen projection device with full-terminal compatibility and multi-scenario adaptability. It supports multi-interface transmission, 4K point-to-point high-definition projection, and integrates dual 5G WIFI, cross-network segment projection, multi-person collaborative annotation and centralized device management. The device is compatible with Windows/Mac/Linux computers, Android/iOS mobile devices, and supports a variety of projection protocols such as Miracast, AirPlay, DLNA. It is an efficient and secure screen projection solution for conference rooms, educational scenarios, office areas and commercial exhibitions.

Core Features

Multi-Interface & One-Click Projection

  • USB wireless screen projection, realize simultaneous signal transmission and power supply via USB port, one-key projection without software installation
  • Support TYPE C/USB, HDMI/USB 2-in-1 and TYPE C/HDMI/USB 3-in-1 screen transmitters
  • TYPE C/HDMI interface supports 4K point-to-point projection; USB interface supports 4K point-to-point projection on Intel 10 CPU computers
  • Support HDMI IN/USB IN wired projection, with touch backhaul function for computer and Android phone

Full Terminal & Multi-Protocol Compatibility

  • Provide multi-system clients: Windows/Mac/Linux computer, Android/iOS mobile device, support 10-point touch reverse control and mouse reverse control
  • Support Miracast (Android/Notebook), WiDi (Notebook) projection without built-in programs, no software installation required
  • Host supports DLNA/AirPlay/YouTube streaming push, mix of push stream and mirror projection
  • Windows client supports window projection, free selection of any application interface for separate projection
  • Win7/10/11, Mac client and multi-interface transmitters support extended screen projection

4K HD Display & Multi-Screen Collaboration

  • Host supports single-screen true 4K point-to-point decoding display, dual/four split screens with 1080P transmission effect for each screen
  • Miracast, Airplay, TYPE C, HDMI and USB all support 4K point-to-point high-definition screen transmission
  • Support mixed dual-screen projection of Miracast & AirPlay & screen transmitter, one-key zoom of any projection image
  • Support synchronous collaborative annotation, iOS client can annotate others’ projection content, realize multi-person collaborative office

Dual 5G WIFI & Information Security

  • Built-in dual 5G WIFI technology, mobile phone can still access the Internet when connecting to the hotspot for projection
  • Support internal and external network quarantine function, effectively guarantee the information security of visitors
  • Dynamic password protection for Miracast/Airplay/client projection, prevent misprojection and avoid projection accidents
  • Support Airplay discovery hidden function, only accessible via official client to initiate projection

Intelligent Projection Modes & Functional Expansion

  • Multiple projection modes switch at will: preemption mode, exclusive mode; support portrait mode for mobile phone full-screen projection
  • Built-in writing and annotation software with writing acceleration feature, support local save, U disk save and QR code share
  • Support mobile phone QR code projection: Android one-click projection, Apple automatic network connection + one-click AirPlay projection
  • Web page projection supported, realize LAN and cross-regional remote projection via browser (input IP + projection code)
  • Host access to USB/HDMI camera and USB microphone, support MJPEG/H264/H265 USB camera, realize BYOM wireless sharing function
  • Equipped with two 232 serial ports, send control commands to external devices and receive central control commands from serial ports
  • PRO version host supports dual HDMI output, realize simultaneous or different display of two screens; multiple hosts can be networked for one-transmission-multiple-reception

Cross-Network Segment Projection

  • Support cross-network segment projection, realize projection between receiving host and transmitting end in different network segments
  • Android/Apple mobile phone, Apple/Windows computer all support cross-network projection
  • Support server-free 8-digit projection code, easy deployment for small conference room groups without building server
  • Support server-based 6-digit projection code, fix projection code for specific conference rooms for convenient management
  • Projection code supports dynamic change; server can be deployed in the cloud or self-built in the client intranet

Intelligent Management & Automatic Maintenance

Centralized Control & Deployment

Function Specification
Server Deployment Support public network/private network centralized control server deployment
Batch Management Batch setting/deployment of online devices via web background; push wallpaper/screensaver/welcome word in batches
Data Statistics Count projection history (projector, time, offline time); export equipment statistical report with one click
Alarm Reminder Equipment failure/disconnection automatic email alarm, real-time notification of management personnel

Automatic Upgrade & Stable Operation

  • Receiving end has networking automatic upgrade function, timely update built-in programs via network
  • USB screen transmitter automatic upgrade: insert into receiving end’s USB port to complete upgrade, convenient for after-sales
  • Built-in real-time clock module, system time runs normally without Internet access
  • 7×24 hours non-stop operation, support setting automatic restart when no projection, ensure 365 days effective operation
  • With administrator function, control the up and down screen operation of projection terminal via administrator client

Application Scenarios

  • Corporate Conference Rooms: Multi-terminal quick projection, multi-person collaborative annotation, improve meeting efficiency
  • Educational Scenarios: Classrooms/lecture halls, teacher-student interactive projection, real-time annotation of teaching content
  • Office Areas: Team collaboration, multi-computer screen sharing, window projection of specific work content
  • Commercial Exhibition: Product display, multi-screen synchronous projection, mobile phone one-click quick projection
  • Remote Office: Cross-regional remote web projection, cross-network segment multi-terminal collaborative work

Note: All relevant information such as pictures, parameters and data provided on the website are for reference only. Please refer to the actual product received for specific specifications, appearance and performance.

Please contact our sales team for the latest details.
