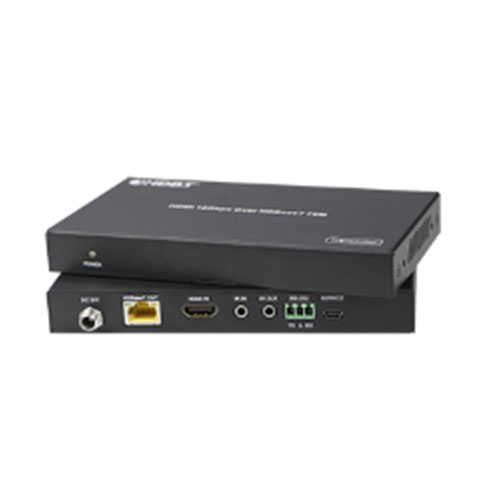

LM-4K100T/R

4K 100 TR HDBaseT Extender is engineered with professional AV installers in mind.Boasting a range of features that streamline system integration, verification,and maintenance, it stands out as one of the slimmest HDBaseT extenders available worldwide—offering exceptional flexibility and remarkable functionality.

Category:
Description

1. Introduction

This 18Gbps HDMI Extender can extend high definition video/audio signal, RS-232 and bi-directional IR signal to a distance up to 492ft/150m between the transmitter and receiver via a single CAT cable. It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. One HDMI loop port is available for output. The extender also supports de-embedded audio for L/R audio output. In addition, the extender is equipped with two-way IR pass-through which allows for source and display control.

This HDMI extender includes two units: transmitter unit and receiver unit. The transmitter unit is responsible for capturing HDMI input signal and carrying the signal via one cost effective CAT5e/6 cable, and transmitting/emitting IR control signals. The receiver unit is responsible for receiving the HDMI signal and transmitting/emitting IR control signal.

The extender offers the most convenient solution for HDMI extension via a single CAT5e/6 with long distance capability, and is the perfect solution for any application.

2. Specifications

Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2 / HDCP 1.4
Video Bandwidth 18Gbps




Video Resolution

 4K2K 50/60Hz 4:4:4

4K2K 50/60Hz 4:2:2

4K2K 50/60Hz 4:2:0

4K2K 30Hz 4:4:4

1080p, 1080i, 720p, 720i, 480p, 480i

All HDMI 3D TV formats

All PC resolutions including 1920 x 1200
Color Space RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0


Color Depth

 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr

4:2:2/4:2:0)

8-bit (4K60Hz 4:4:4 )


HDMI Audio Formats

 LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
L/R Audio Formats PCM 2.0
ESD Protection IEC 61000-4-2:

±8kV (Air-gap discharge), ±4kV (Contact discharge)

Note: All relevant information such as pictures, parameters and data provided on the website are for reference only. Please refer to the actual product received for specific specifications, appearance and performance.
Please contact our sales team for the latest details.
