DH-B18

HDMI 4K/60 1:8 Amplifier Splitter, HDMI 2.0 4K @ 60Hz 4:4:4. EDID settings. Embedded audio. Supports HDMI 2.0, HDCP 2.2.

Category:
Description






DH-B18 18Gbps 1×8 HDMI Splitter – 产品介绍

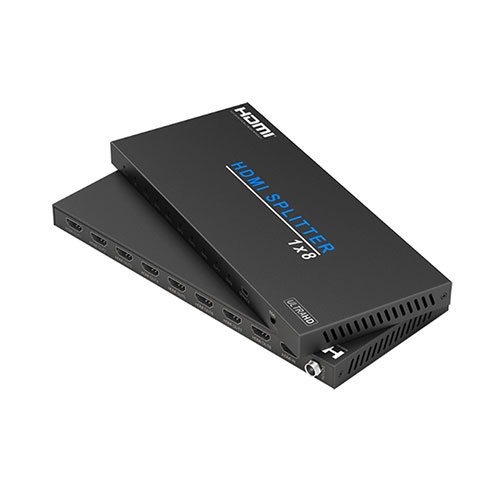

DH-B18 18Gbps 1×8 HDMI Splitter

Product Overview

DH-B18 is a high-performance 1×8 HDMI splitter designed for synchronous distribution of a single HDMI signal to 8 display devices. With 18Gbps (594MHz) high video bandwidth, it fully complies with HDMI 2.0b and HDCP 2.2 standards, supporting up to 4K@60Hz 4:4:4 ultra-high definition resolution and HDR function. Equipped with COPY/AUTO EDID configuration via dip switch, compact metal enclosure and stable power supply, it provides reliable, high-quality HDMI signal distribution solutions for home entertainment, commercial display and educational scenarios.

Important Note: This product contains sensitive electrical components vulnerable to damage from electrical spikes, surges, electric shock and lightning strikes. Use of surge protection systems is highly recommended to protect the equipment and extend its service life. For optimal performance, use “Premium High Speed HDMI” cables for connections.

Core Features

  • Compliant with HDMI 2.0b and HDCP 2.2 standards, ensuring compatibility with mainstream high-definition devices
  • 18Gbps high video bandwidth, supporting 4K@60Hz 4:4:4 resolution and HDR function for stunning visual effects
  • 1×HDMI input to 8×HDMI output, realizing synchronous signal distribution to multiple display devices
  • COPY/AUTO EDID control via dip switch: COPY mode reads EDID from OUT 1~8 in priority order; AUTO mode sends the best-matched EDID to source device
  • Metal enclosure design, compact and portable, facilitating flexible installation and deployment
  • ESD protection (±8kV air-gap discharge, ±4kV contact discharge) for enhanced durability and stability
  • Supports a wide range of audio formats, including Dolby Atmos, DTS:X, Dolby TrueHD and DTS-HD Master Audio

Technical Specifications

Parameter Category Specification
HDMI & HDCP Compliance HDMI 2.0b, HDCP 2.2
Video Bandwidth 594MHz / 18Gbps
Supported Resolutions 480i ~ 1080p50/60Hz, 4Kx2K@24/30Hz, 4Kx2K@60Hz
Supported Audio Formats PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
ESD Protection ±8kV (Air-gap discharge), ±4kV (Contact discharge)
Input Ports 1×HDMI Type A (19-pin female), 1×SERVICE (Micro USB, firmware update)
Output Ports 8×HDMI Type A (19-pin female)
Housing & Color Metal Enclosure, Black Silkscreen
Dimensions (W×D×H) 243mm × 102mm × 16mm
Net Weight 572g
Power Supply Input: AC 100-240V 50/60Hz; Output: DC 12V/1A (Locking connector)
Power Consumption 6.15W
Operating Temperature -10°C ~ 50°C (14°F ~ 122°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity 20% ~ 90% RH (non-condensing)

Operation & Interface Functions

Indicator Lights

  • POWER LED: Blue LED illuminates when the device is powered on
  • IN LED: Blue LED illuminates when the HDMI IN port is connected to an active source device
  • OUT LED: Blue LEDs illuminate when the corresponding HDMI OUT ports are connected to active display devices

EDID Configuration (Dip Switch)

  • COPY Mode: The unit reads the EDID setting of HDMI OUT 1 display device and sends it to the source device (priority order: OUT 1 → OUT 8). If no EDID is detected from OUT 1, it reads from OUT 2, and so on.
  • AUTO Mode: The unit compares EDID settings of all HDMI OUT 1~8 display devices, sends the best-matched EDID to the source device, ensuring compatible signal output to all displays.

Interface Connections

  • HDMI IN: Connect to HDMI source devices (Blu-ray player, DVD player, set-top box, PS3/PS4, etc.) via HDMI cable
  • HDMI OUT 1~8: Connect to HDMI display devices (TV, monitor, audio amplifier, etc.) via HDMI cable
  • SERVICE Port: Micro USB port for firmware update only
  • DC 12V Port: Connect to the provided 12V/1A power adapter for power supply

HDMI Cable Length Recommendations

  • 4K2K@60Hz / 8-bit YUV 4:4:4: Maximum 3m
  • 4K2K@30Hz / 8-bit: Maximum 10m
  • 1080p@60Hz / 8-bit: Maximum 15m

Applicable Scenarios

  • Home Entertainment: Home theater, entertainment rooms, synchronous display of high-definition content on multiple TVs/monitors
  • Commercial Display: Shopping malls, airports, hotels, digital signage and advertising screen synchronous content release
  • Educational Institutions: Classrooms, lecture halls, synchronous display of teaching content on multiple screens for better viewing
  • Conference & Presentation: Conference rooms, exhibition halls, product demonstration areas, synchronous display of presentation materials
  • Public Venues: Show rooms, demo rooms, public information display systems with multi-screen synchronous output
Note: All relevant information such as pictures, parameters and data provided on the website are for reference only. Please refer to the actual product received for specific specifications, appearance and performance.

Please contact our sales team for the latest details.
