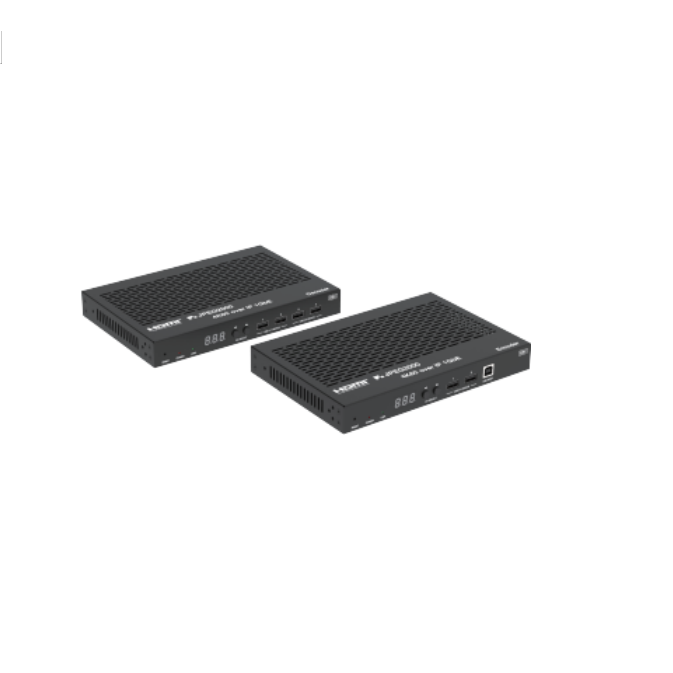

LM-MJPEG-2T/R

This 4K60 IP distributed audio and video codec is based on JPEG2000 technology. An optical port and an electric port are integrate.

Encoder input supports video resolution up to 4K 60 4:4:4 with audio stripping or embedding. Decoder output support

Video resolution up to 4K 60 4:4:4 with audio stripping. This product supports ARC/eARC/SPDIF/Analog Audio Return. It supports USB 2.0/KVM/camera, 1G Ethernet, bidirectional RS-232, bidirectional infrared and POE functions. Client mode supports RS-232, infrared, and CEC control. Built-in two relay ports and two I/O ports for contact control.

Built-in MJPeg substream supports a large number of API commands for flexible configuration, suitable for third-party control applications to preview video content.

The system is based on Linux for software development, provides flexible control mode, and can be based on the intelligent networking mode of Gigabit Ethernet switch.

Category:
Description

4K60 IP Distributed AV Encoder LM-MJPEG-2T/R

Functional characteristics

☆ Compliant with HDMI 2.0b and HDCP 2.2 specifications

☆ Input and output video resolution up to 4K 60 4:4:4, 18 Gbps video bandwidth

☆ Through a single CAT5E/6/6A/7 network cable, the signal transmission distance can reach 100m.

☆ Transmit video, analog/digital audio, infrared, RS-232, CEC, and USB signals via Ethernet

☆ Photoelectric integrated design (optical port and electrical port share one box)

☆ Support ARC/eARC/SPDIF/analog audio return function

☆ Support channel configuration: use the nixie tube on the front panel to preview the channel, and set it flexibly through the keys on the front panel

☆ Built-in two-way relay port and two-way I/O port for contact control

☆ With unicast and multicast functions

☆ Support point-to-point signal extension, video matrix and video wall (up to 9×9)

☆ Intelligent video wall management

☆ Built-in MJPeg sub-stream for real-time picture preview

☆ 1G Ethernet switch

☆ Support POE function

☆ Built-in web configuration and control, as well as Telnet and SSH

☆ HDMI audio format supports LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/ex, Dolby True HD, DTS, DTS-96/24, DTS-ex DSD, DTS High Res, DTS-HD Master

☆ Intelligent networking design, easy and flexible installation

Note: All relevant information such as pictures, parameters and data provided on the website are for reference only. Please refer to the actual product received for specific specifications, appearance and performance.
Please contact our sales team for the latest details.
