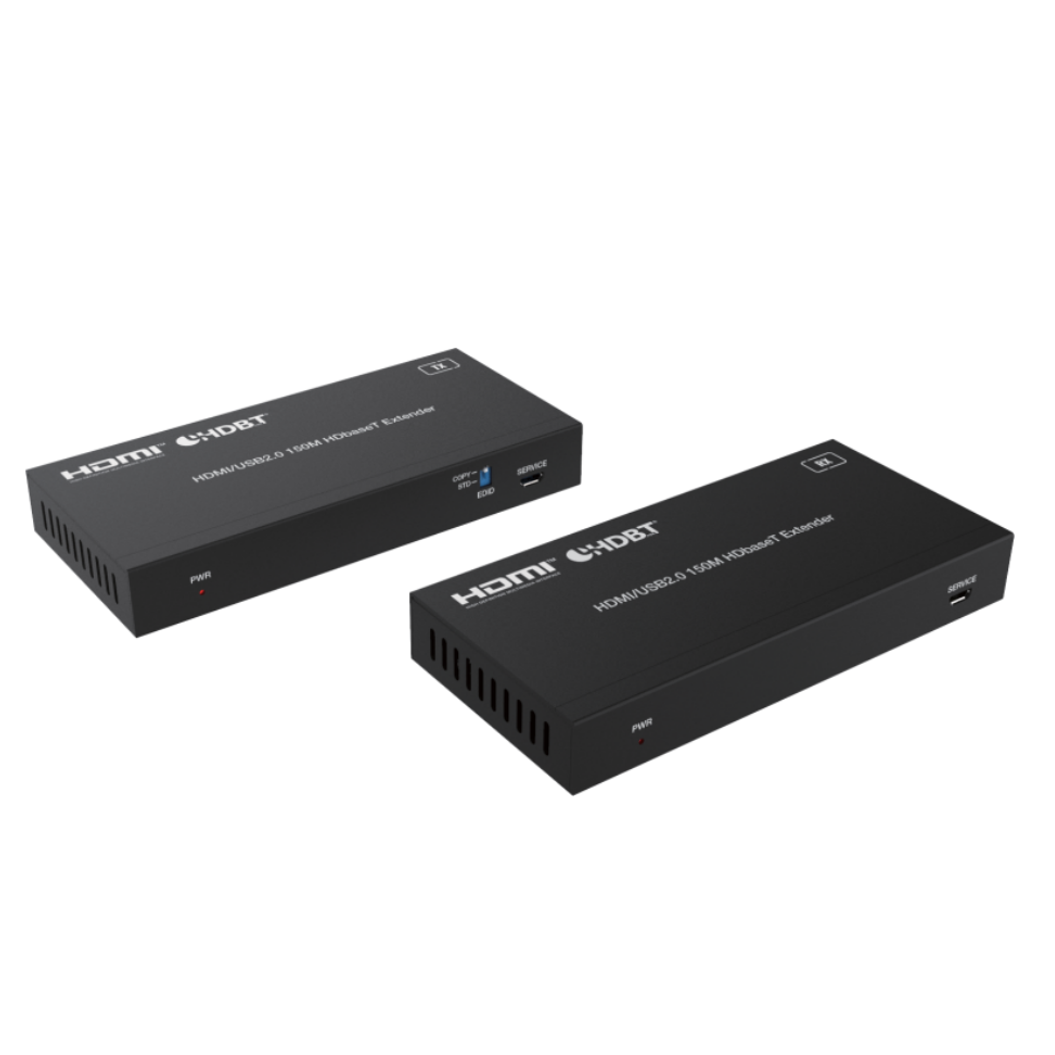

HDBase150

This 18Gbps HDBaseT Extender can extend HDMI signal, bi-directional IR control signal and USB KVM signal to a distance up to 150m via a single CAT6 cable. This product converts HDMI signal to standard HDBaseT signal and transmits it through LAN cable. It can easily control signal source device or display device from the remote end through bi-directional IR signal pass- through function. Video resolution up to 4K2K@60Hz YUV 4:4:4. It also supports USB 2.0 transmission and POC function.

Category:
Description

HDMI 2.0b and HDCP 2.2 compliant
Support 18Gbps video bandwidth
Support video resolution up to 4K2K@60Hz YUV 4:4:4
The transmission distance can be extended up to 492ft / 150m at the
resolution of 1080P@60Hz, or 394ft / 120m at 4K2K@60Hz 4:4:4 via a
single CAT6 cable
Support bi-directional IR signal and USB KVM signal pass-through
Support bi-directional POC (Power over Cable) function
Support USB 2.0 transmission
EDID management
Compact design for easy and flexible installation

Note: All relevant information such as pictures, parameters and data provided on the website are for reference only. Please refer to the actual product received for specific specifications, appearance and performance.
Please contact our sales team for the latest details.
