HDMI 2.0b, HDCP 2.2 compliant
Maximum HDMI bandwidth: 18 Gbps
Video resolution up to 4K60 YCbCr 4:4:4 24bit
Supports HDR, HDR10 +, Dolby Vision, HLG
Audio up to LPCM 7.1CH, Dolby TrueHD, DTS-HD Master
Input resolution and output resolution are directly connected, and the signal has no compression, no loss and no delay.
Built-in signal equalization, signal recovery and signal amplification circuit
Standard HDMI cable 4K60 front and rear 5m, 4K30 front and rear 10m, 1080p60 front and rear 15m
Built-in HDCP processing logic to avoid HDCP compatibility issues
Support two modes of input plug automatic switching and manual switching
Support ARC (Audio Return) function, ARC audio can be output through the audio de-embedding optical fiber port
Optical fiber audio de-embedding supports up to 5.1 CH, synchronous output of optical fiber audio and video signals
Analog audio de-embedding supports LPCM 2CH, synchronous output of analog audio and video signals
Intelligent EDID management, support EDID COPY or built-in EDID (video EDID COPY output, audio EDID can be set to 2CH/5.1CH/7.1CH)
Support IR control, external connection of 38KHz IR receiving line
Flexible control mode: front panel keys, IR and RS-232
Fanless design, low heat, no noise, stable performance, stable work in harsh environment
Reasonable design, easy to install

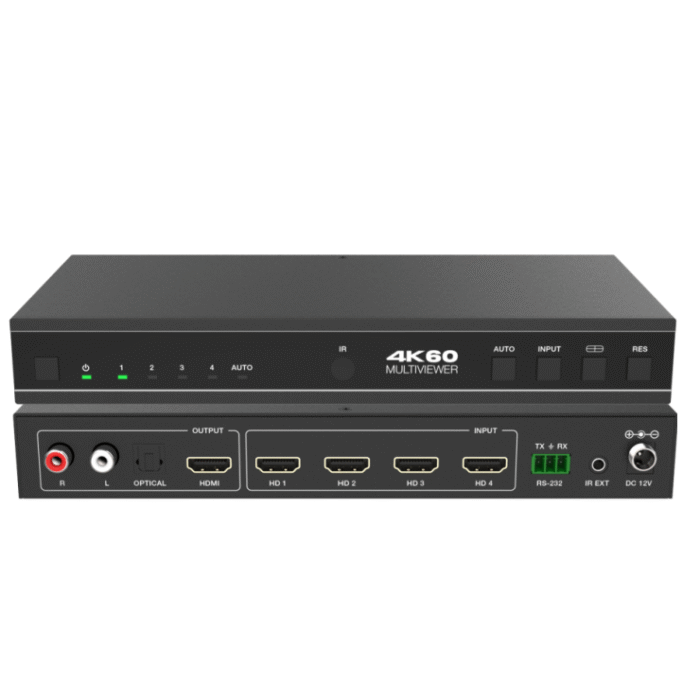

HD-64H2UA
The HD-64H2UA is a 4-way Multi-picture seamless switcher for HDMI signals that supports 4Kx2K @ 60Hz video signals at data rates up to 18 Gbps and supports HD lossless audio formats. The input supports the automatic identification function, and the input resolution and the output resolution are completely straight through, and the signal has no compression, no loss and no delay. HD-64H2UA supports HDR, HDR10 + and Dolby Vision, HLG functions, and can automatically adjust the color depth according to the EDID information of the display device to prevent color compatibility problems between the signal source and the display device.
Description
