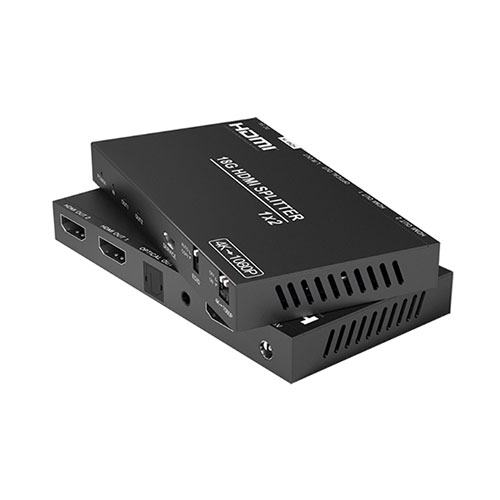

LM-B12AE
1, supporting 1-in 2-out signal distribution
2, support video up to 4K @ 60Hz 8bit RGB, YCbCr 4:4:4/4:2:2
3. Output end supports independent 4K to 2K down-conversion
4. Support up to 7.1 channels of common embedded audio, such as LPCM, Dolby TrueHD, DTS-HD, Master Audio, etc.
5, support HDMI embedded audio de-embedded to Toslink optical digital or 3.5 analog stereo audio
6. Support the intelligent EDID management function or copy the connected EDID of the most front output.
7. The front panel is equipped with LED status indicator to intuitively understand the operation status.
8, all ports have perfect ESD electrostatic protection
