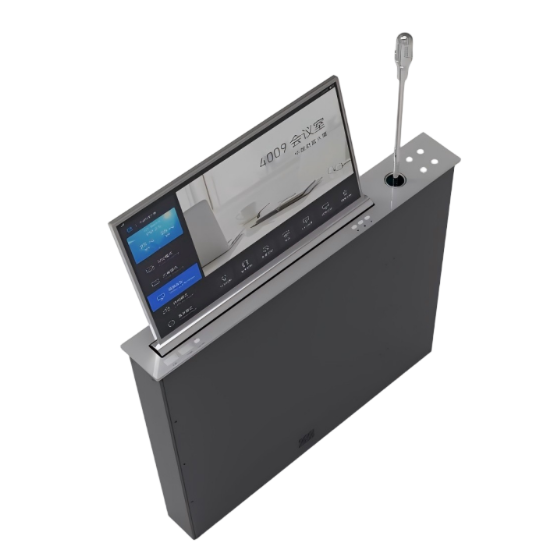

LCD Touch Microphone Lifting All-in-One

Intelligent paperless conference system based on information technology launched an innovative conference terminal screen, lifting machine using intelligent control technology, a key operation that automatically completes the start of the lifting terminal screen, touch screen up, down, forward, backward, pause, switch and other actions, while introducing a variety of control compatibility technology, to achieve a single, multiple, and so on. Multimedia conference room, video conference room, multi-functional hall, lecture hall, academic seminar room, consultation seminar room and other application scenarios.

Categories: ,
Description

Paperless Conference System-LCD Touch Microphone Lifting All-in-One 21.5T

1, material process: shell aluminum alloy material, CNC integrated molding, sandblasting anodizing process. 2, 21.5 inches, display ratio: 16:9, resolution: 1920 * 1080, display screen 1080P high-definition full-view IPS original A + gauge screen; magnetic capacitive screen, 10-point touch. 3, 10-point touch, induction force < = 10g, touch response time < = 5ms), support full-screen touch, slide screen, drag, zoom to view conference data; number of key touch points > = 50000 times, response time: 10 MS 4, touch capacitive/Mo type 7, touch ultra-thin high-definition display screen and ultra-thin round shaft lifter without exposed connection lines, no connection backplane, no exposed screws, to ensure the overall beauty of the lifting display touch screen 5. Lifter panel size ≤ length 585MM, width 73MM, thickness 5MM. The screen shell is made of aluminum alloy, the whole CNC is carefully carved and integrated, the anodizing process is processed, the thickest 8MM and the thinnest only 4.8MM. The edges of the aluminum alloy shell are chamfered. 6, double net sound slide rail, with gear meshing lifting, multi-point balance lifting system is stable and reliable, lifting noise is very small. 7. The lifter panel is equipped with: lifting, pause, lowering, forward tilting, backward tilting, multimedia conference terminal switch, USB interface, etc; 8. The control mode supports hand-in-hand 232 control, remote control and manual control; 9. The automatic elevation angle of the screen is 30 degrees when it rises in place. It supports the electric adjustment of the angle after 0-30 to ensure the best ergonomic viewing angle and touch angle of the display; 10. The lifter opens and closes the door with the function of gravity induction to prevent hand pinching, so as to prevent pinching and ensure safety. (Provide screenshots of product functions and affix the official seal of the manufacturer) 11. Highly integrated flexible FPC HD interface (one interface solves all signal problems of power supply, touch control and video), and the interface can be bent from 0 to 360 degrees. (Provide the test report with the picture of the parameter, stamped with the official seal of the original factory) 12. The scalable riser has an error correction mechanism. 13. Support the software with one key on the same screen, support the physical key on the expansion panel with one key on the same screen, and automatically synchronize the state switching to the terminal software interface. State saving supports one-key exit from broadcasting and one-key 3s switching to the system desktop or returning to the paperless client interface. (Provide proof of screenshots and official seal of the manufacturer) 14. Support the extension of the one-key call service of the panel entity to automatically associate the paperless service terminal to realize the fast service request and cooperate with the voice reading prompt of the service terminal. 15. Support the cloud switch function to switch the cloud signal to the participating terminal for real-time sharing. 16. The participating terminal can separately set mute to send broadcast and mute to receive broadcast according to the needs of the venue. 17. The screen supports expansion and has automatic disinfection function to automatically purify viruses. 18. Paperless integrated terminal adopts aviation aluminum integrated CNC molding and oxidation sandblasting process. 19. The lifter control software supports PC installation and is compatible with common operating systems. It can be controlled in a unified way or in any group to control the lifting, pausing, lowering and other motion States of the lifter.
