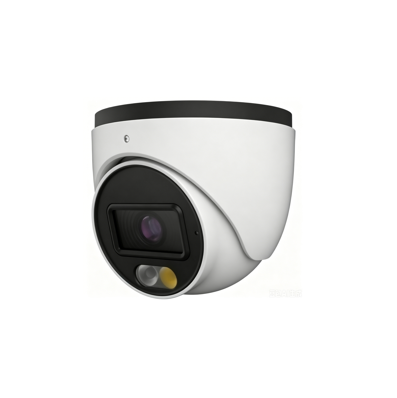

Dome HD Camera-LM-9S6L-C
Click to enlarge

Bullet HD IP Camera-LM-9S6Q-C

Max. Resolution: 4MP (2560 × 1440)
Video Codec: H.265+ / H.265 / H.264+ / H.264 / MJPEG
Night Vision Distance: 20~30m infrared range, 20~30m white light range
Supports intelligent fill light
Equipped with intelligent soft photosensor for automatic day/night switching
Built-in 3D noise reduction, wide dynamic range, strong light suppression, backlight compensation and other image functions
Supports ROI (Region of Interest) encoding
Remote monitoring accessible via smartphones and tablets
Power supply: DC12V / PoE
IP67 waterproof rating
Dual-stream supported
Intelligent motion detection supported
Human-shaped detection functions including cross-line detection and regional intrusion detection
P2P function supported
Dual-system backup supported

Category:
Description






LM-9S6Q-C IP Camera – Product Introduction


LM-9S6Q-C 4MP IP NETWORK CAMERA

Product Overview

LM-9S6Q-C is a 4MP outdoor waterproof network surveillance camera equipped with 1/3″ CMOS image sensor, supporting dual light supplement of infrared and white light. It adopts ICR day-night switching filter, built-in human shape intelligent detection algorithm, with digital wide dynamic, fog penetration, noise reduction and other image optimization functions. It supports PoE power supply, IP67 waterproof and dustproof, suitable for outdoor roads, parks, residential quarters and other monitoring scenarios.

Core Product Features

  • 4MP High Definition Image Sensor: 1/3-inch CMOS, maximum resolution 2560×1440, ultra-low illumination design, clear monitoring effect day and night
  • Dual Light Fill Light Design: Infrared fill light distance 20~30m, white light fill light distance 20~30m, automatic switch between day and night via ICR filter
  • Multiple Image Optimization Algorithms: Digital wide dynamic, backlight compensation, strong light suppression, fog penetration and digital noise reduction built-in, clear picture under complex light environment
  • Efficient Video Coding: Main stream and sub stream support H.265+/H.265/H.264+/H.264, greatly reducing storage and bandwidth consumption
  • Human-shaped Intelligent Detection: Intelligent motion detection filtering human targets, support line crossing and regional intrusion alarm linkage with white light warning
  • IP67 Waterproof & PoE Supply: Meet IP67 waterproof and dustproof standard, support IEEE802.3af PoE power supply, easy on-site wiring construction
  • Complete Network & Access Protocols: Compatible with ONVIF, GB/T28181-2016 standard, support Web, NVR, client and mobile APP remote preview

Key Technical Parameters

Parameter Category Specification Details
Model No. LM-9S6Q-C
Image Sensor 1/3″ CMOS
Max Image Resolution 2560 × 1440 (4MP)
Electronic Shutter 1/3s ~ 1/100000s
Aperture Type Fixed Aperture
Minimum Illumination 3.6mm@F2.0: Color 0.014lux, B/W 0lux (IR on); 6mm@F1.6: Color 0.008lux, B/W 0lux (IR on)
Signal-to-Noise Ratio ≥50dB
Optional Lens & View Angle 3.6mm@F2.0: H73° / V40° / D88°; 6mm@F1.6: H49° / V27° / D58°
Lens Mount M12
Day & Night Mode ICR Infrared Cut Filter
Image Enhancement Digital WDR, BLC, HLC, Fog Penetration, Digital 3D-NR
Main Stream Encode H.265+ / H.265 / H.264+ / H.264
Sub Stream Encode H.265+ / H.265 / H.264+ / H.264 / MJPEG
Encode Profile H.265 Main Profile@Level4.1 High Tier
Supported Resolution 4MP, 3MP, 1080P,720P,D1,640×360,VGA,480×240,CIF
Frame Rate Main/Sub Stream: 1~30fps(60Hz),1~25fps(50Hz)
Bit Rate Range 32Kbps ~ 4Mbps
Audio Encode G711A/U, Built-in 1-channel MIC
Max Concurrent Users 6 online users simultaneously
Supported Protocols UDP,IPv4,IPv6,DHCP,NTP,RTSP,DDNS,802.1x,HTTP,QoS,P2P,ONVIF,GB/T28181-2016
Intelligent Functions Human-shaped motion detection, line crossing detection, regional intrusion, white light alarm linkage
Fill Light Distance Infrared:20~30m; White Light:20~30m
Waterproof Grade IP67
Power Supply DC12V / IEEE802.3af PoE
Power Consumption ＜6W
Operating Temperature -20℃ ~ 55℃, Humidity ＜95% non-condensing
Dimension 166 × 93.2 × 85.2 mm
Net Weight Approx 0.27KG
Certifications CE, FCC, RoHS2.0, REACH, WEEE

Image Adjustable Parameters

All parameters can be adjusted via Web page and PC client software:

  • ROI Region of Interest, brightness, chroma, saturation, contrast, digital wide dynamic, sharpness, image mirror/flip, digital noise reduction, anti-flicker
  • Support independent ROI configuration for main stream and sub stream respectively

Remote Access & Compatibility

  • Remote Monitoring Methods: Web Browser, TVT NVR, NVMS2.X PC Client, Mobile APP
  • Supported Browsers: Chrome89.0+, Edge89.0+, Firefox87.0+, Safari14.0+
  • Network Security Protection: Video encryption, firmware encryption, configuration encryption, digest authentication, account lock, IP filtering, 802.1x authentication
  • Development Support: Complete API & SDK provided for secondary development
  • Storage Mode: Network remote video storage supported, local TF card storage not available

General System Functions

  • Digital watermark anti-counterfeiting, video mask privacy shielding, heartbeat detection, system configuration backup, one-key arm/disarm
  • Alarm trigger events: IP conflict alert, network disconnection alarm, intelligent detection linkage white light warning

Hardware Interface Description

  • Network Port: 1 × RJ45 10/100 Base-T Ethernet port
  • Audio: Built-in single channel microphone, no external audio output interface
  • Video Output: Analog video output not supported
  • Local Storage: No local storage slot
  • Hardware Reset Button: Not equipped

Installation Instructions

Installation Methods

Two installation ways available: wall mounting and ceiling mounting, matched metal bracket for installation.

Installation Requirements

  • For outdoor installation, ensure the lens is slightly downward to avoid direct sunlight reflection causing overexposure
  • All cable joints must be sealed with waterproof accessories to prevent rainwater infiltration damage
  • Choose PoE power supply for simpler wiring; DC12V power adapter shall meet stable power output standard
  • Keep the ventilation gap around the camera, do not cover the infrared and white light fill light window
  • After installation, check network connection, image preview and intelligent alarm function test

Applicable Scenarios

  • Residential Community: Road, gate and parking lot security monitoring, human trajectory and intrusion alarm
  • Park & Scenic Spot: Outdoor public area real-time monitoring, dual-light night clear imaging
  • Factory & Industrial Park: Workshop periphery, gate access intelligent detection, cross-line warning
  • Road & Street Side: Outdoor road monitoring, low-light environment clear picture output
  • Small Business Store: Shop entrance monitoring, mobile remote real-time preview via APP
Installation & Usage Caution: This camera is IP67 waterproof, but cable wiring position must be sealed well to avoid water ingress. Do not aim the lens directly at strong light source for long time, which may cause permanent damage to CMOS sensor. Regularly clean the lens glass surface to remove dust and dirt for stable image effect.

Note: All relevant information such as pictures, parameters and data provided on the website are for reference only. Please refer to the actual product received for specific specifications, appearance and performance.

Please contact our sales team for the latest details.
