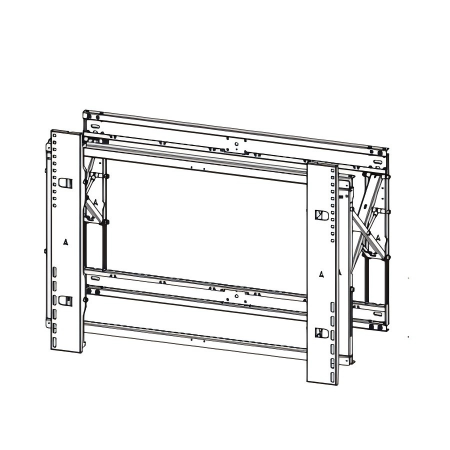

LM-55YYZJ Video Wall Mount
Product Overview
LM-55YYZJ is a high-load video wall mount specially designed for large flat-panel displays (LCD/Plasma). It supports 45″ to 90″ screens with a maximum load capacity of 198 Ibs (90 kg) and is compatible with VESA 800×600 mounting standards. The bracket adopts a spring-assisted opening structure, featuring stable load-bearing, wide compatibility and secure installation. It can be mounted on solid concrete, cinder block or wood stud walls, meeting the installation needs of various video wall scenarios such as commercial displays, monitoring centers and conference rooms.
Important Safety Warnings: Installation must be performed by personnel with basic construction and installation knowledge; ensure the supporting surface can bear the combined load of the mount, display and hardware; use only in solid parts of walls (avoid mortar joints for cinder block walls); always have at least two people assist with lifting and positioning; tighten screws firmly but do not over tighten (especially M8x63.5mm hex bolts) to prevent damage.
Core Product Features
- Wide Compatibility: Supports 45″ to 90″ flat-panel displays (LCD/Plasma), compatible with VESA 800×600 mounting standard
- High Load Capacity: Maximum load-bearing up to 198 Ibs (90 kg), providing stable support for large-size heavy displays
- Multi-Wall Compatibility: Suitable for solid concrete, cinder block and wood stud walls (meets corresponding wall specifications)
- Spring-Assisted Structure: Push both sides to open via spring force, convenient for assembly and screen installation
- Secure Locking Design: Equipped with locking tabs on hooks and fixing screws to prevent accidental popping open, ensuring display safety
- Complete Installation Kit: Includes necessary hardware (screws, washers, anchors, hex wrench, magnetic spirit level) for standard installation scenarios
Key Technical Parameters
| Parameter | Specification |
|---|---|
| Model | LM-55YYZJ |
| Product Type | Video Wall Mount (for flat-panel displays) |
| Supported Screen Size | 45″ ~ 90″ |
| Maximum Load Capacity | 198 Ibs (90 kg) |
| VESA Compatibility | VESA 800×600 |
| Applicable Wall Types | Solid concrete wall, cinder block wall, wood stud wall |
| Required Wall Flatness | Height difference between installation holes ≤ 2mm |
Package Contents
| Item Name | Quantity | Specification |
|---|---|---|
| Wall Plate (AA) | 1 | Mounting main panel |
| Hexagon Wrench | 1 | For screw tightening |
| Magnetic Spirit Level | 1 | For level adjustment during installation |
| Screw (E) | 4 | M8x25 |
| Washer (1) | 4 | 416×6.2×1.0 |
| Spacer (1) | 4 | Mounting spacer |
| Washer (2) | 6 | Installation washer |
| Screw (G) | 6 | M8x63.5 (for wall plate fixing) |
| Concrete Anchor (H) | 4 | For concrete/cinder block wall installation |
| Hooks | 2 | For attaching to display |
| Locking Tabs | 2 | For securing hooks to mount |
Installation Requirements & Methods
Wall Specifications
- Concrete Wall: Thickness ≥ 8″ (203mm); compressive strength 2500-3000 psi (17.2-20.7 MPa); meets ASTM C39 standard
- Cinder Block Wall: Meets ASTM C216/C90 specifications; nominal width ≥ 8″ (203mm); mount in solid part (≥1″ /25mm from block side); do not drill into mortar joints
- Wood Stud Wall: Mount bolts must be anchored to stud centers; secure to two studs with two lag bolts per stud; use “edge to edge” stud finder for accuracy
- Plaster/Drywall: If thickness >16mm, custom fasteners must be provided by installer
Installation Steps (At Least Two People Required)
- Preparation: Verify all components are intact; confirm wall meets specifications; mark display center as installation reference
- Wall Plate Positioning: Place wall plate (AA) at desired location; align with stud centers (wood stud wall) or mark holes (concrete/cinder block wall); use spirit level to ensure levelness
- Drilling & Anchor Installation: Drill 3/8″ (10mm) diameter holes 2.5″ (65mm) deep (concrete/cinder block wall); insert anchors (H) flush with wall
- Fix Wall Plate: Secure wall plate to wall with screws (G) and washers (2); tighten firmly but do not over tighten
- Attach Hooks to Display: Install hooks to display’s recess fixings using matching hardware
- Mount Display: Hook display onto the wall plate; secure with locking tabs on both hooks
- Final Fixing: Tighten four screws to prevent accidental popping open of the bracket
Applicable Scenarios
- Commercial Display: Shopping malls, airports, hotels, digital signage video walls and advertising display systems
- Monitoring Centers: Security monitoring rooms, command centers, multi-screen monitoring display walls
- Conference Rooms: Enterprise large conference rooms, video conference display walls, training room multi-screen setups
- Public Institutions: Government departments, schools, hospitals, public information display walls
- Exhibition Halls: Product exhibition halls, museum display areas, multi-screen interactive display systems
Note: All relevant information such as pictures, parameters and data provided on the website are for reference only. Please refer to the actual product received for specific specifications, appearance and performance.
