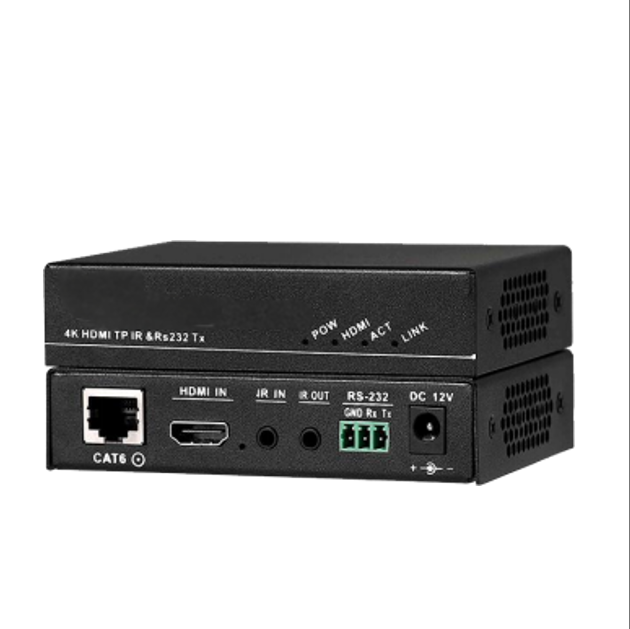

LM-HB-70T/R

HDBaseT twisted-pair extender is a long-distance HD signal transmitter without compression and delay integrated with HDBaseT technology. HDMI signals are output from the receiving end. The signal resolution is up to 4Kx2K, and the signal can be extended to 70 meters through a single CAT5e/CAT6a cable. It supports CEC function, RS232 two-way communication function and two-way IR control. In addition, it also supports two-way POE function, and power can be supplied at either end.

Category:
Description

A single network cable can transmit up to 70 meters.

The equipment has excellent image processing and transmission capabilities, making signal transmission more smooth and stable.

Support CEC function, RS232 bidirectional communication function and bidirectional IR control.

Support POE function.

The equipment adopts domestic chip scheme, with stable performance and stronger autonomy and controllability.
