HD0110

The HD0110 is a 1-input, 16-Output Distribution Amplifier for HDMI signals with resolutions up to 4K × 2K @ 60Hz. They support data rates up to 18 Gbps, 3D and HD lossless audio formats, and feature easy-to-integrate features such as automatic input signal equalization, input signal restoration, output signal amplification, and automatic color depth management. Its EDID Manager and Key Manager technologies maintain continuous EDID communication between connected devices and ensure simultaneous distribution of HDCP-encrypted source content.

Category:
Description

HDMI standard: HDMI 2.0b (compatible with DVI 1.0) HDCP standard: HDCP 2.2
Maximum video bandwidth: 18 Gbps
Support 1-channel HDMI digital signal input and 16-channel HDMI digital signal output.
Maximum video resolution: 4Kx2K @ 60Hz 24bit YCbCr 4:4:4
Automatic color depth management, supporting color depths of 30 bit, 36 bit and 48 bit
Built-in signal equalization, signal recovery and signal amplification circuit
Maximum HDMI cable length: 4Kx2K @ 60Hz: 10m
Support HDR, HDR10 + and Dolby Vision, HLG function
Audio support DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD
Intelligent EDID management
Automatically correct HDMI source signal format to match DVI display device
Adopt aviation spiral power interface
Fanless design, low heat, no noise, stable performance, stable work in harsh environment.

Keywords: Distribution Amplifier, 16-Output, 4K, HDMI

Related products

USB-RJ45

,
The USB-RJ45 is a USB 2.0 Extender that can transmit USB 2.0 signals to 100m through a single Cat 5e/6 network cable. It supports USB 2.0 to 1.0 devices with data rates up to 200 Mbps and is compatible with USB 3.0 devices capable of operating at USB 2.0 data rates. The USB-RJ45 supports USB peripherals such as keyboards, mice, mass storage devices, and network cameras in professional video and audio environments. USB-RJ45 uses the latest USB codec chip, so that it has super USB compatibility, supports various USB interface devices, and can transmit USB camera signals without delay, while providing two-way POC power supply.

CAM-PTZ

,
Camera Mount Accessories

LM-4K100T/R

4K 100 TR HDBaseT Extender is engineered with professional AV installers in mind.Boasting a range of features that streamline system integration, verification,and maintenance, it stands out as one of the slimmest HDBaseT extenders available worldwide—offering exceptional flexibility and remarkable functionality.

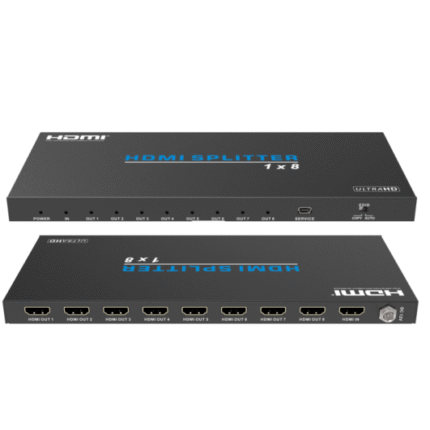

HD0108

The HD0108 is a 1-input, 8-output Distribution Amplifier for HDMI signals with resolutions up to 4K × 2K @ 60Hz. They support data rates up to 18 Gbps, 3D and HD lossless audio formats, and feature easy-to-integrate features such as automatic input signal equalization, input signal restoration, output signal amplification, and automatic color depth management. Its EDID Manager and Key Manager technologies maintain continuous EDID communication between connected devices and ensure simultaneous distribution of HDCP-encrypted source content.

HD0404

HD0404 is a highly integrated multi-functional 4-in-4-out HDMI matrix switcher, using pure hardware high-speed matrix switching chip, with high integration and more stable system. The input resolution and the output resolution are completely straight-through, and the signal has no compression, no loss and no delay. For video signals with resolutions up to 4Kx2K @ 60Hz, YCbCr sampling 4:4:4 chrominance. They support the HDMI 2.0b parameter standard, including data rates up to 18 Gbps, color depths up to 12 bits, 3D, HD lossless audio formats, and CEC. The HDCP 2.2-compliant matrix switcher uses an EDID manager and key manager to maintain continuous EDID communication between connected devices and ensure arbitrary distribution of HDCP-encrypted source content, as well as built-in HDCP processing logic to avoid HDCP compatibility issues.

USB optical transceiver USB-FC

,
USB3.1 Gen 1 optical transceiver adopts optical fiber conversion technology to realize optical fiber transmission of USB3.0 signal. It is convenient for users to transmit USB3.0 signals over a long distance. The single-mode or multi-mode optical fiber data transmission distance above OM3 is 300 m, and the image transmission distance is 100m. This product is only used for USB3.0 products, and is not compatible with USB2.0 and USB1.1. The host side uses a compact mini package, which can be directly plugged into the USB port, and the device side has a built-in 4-port USB3.0 hub. This product is plug and play, no need to install the driver. This product uses the optical fiber transmission, has the very good anti-electromagnetic interference ability.

LCD Touch Microphone Lifting All-in-One

,
Intelligent paperless conference system based on information technology launched an innovative conference terminal screen, lifting machine using intelligent control technology, a key operation that automatically completes the start of the lifting terminal screen, touch screen up, down, forward, backward, pause, switch and other actions, while introducing a variety of control compatibility technology, to achieve a single, multiple, and so on. Multimedia conference room, video conference room, multi-functional hall, lecture hall, academic seminar room, consultation seminar room and other application scenarios.

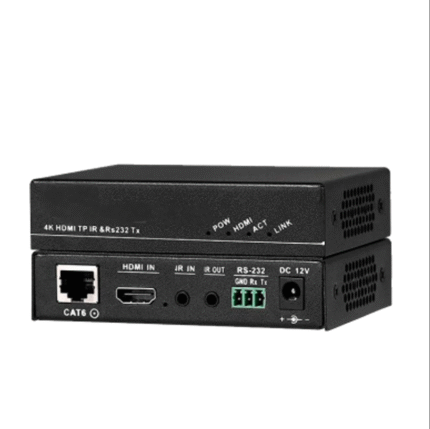

LM-HB-70T/R
