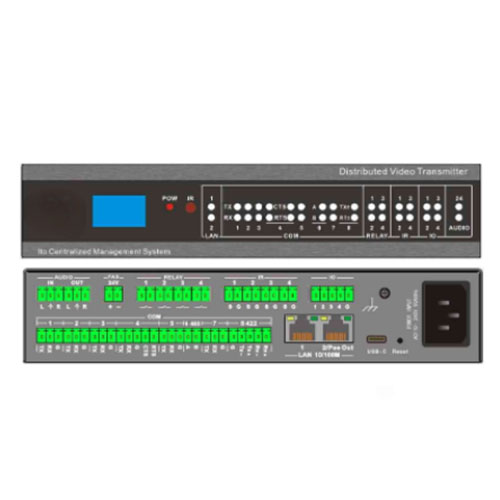

1. Introduction
The Integrated Controller is designed to be utilized in the sectors of commanding center, automated office system, multi-media room and smart home. With a programmable interactive user interface over configuration protocols, the integrated system provides intelligent networking service, ideal for the establishment of modern commanding and control center. The Controller features 8 two-way serial ports, 8 IR outputs, 8 Relay ports, 8 digital I/O ports and 1 Gigabit Ethernet port, suitable for large-scale application systems to control multiply devices.
The Controller is used in a diverse range of installations and applications across industries including emergency alarming centers, C4ISR solutions, governmental administration centers, smart buildings, multi-media conference rooms, multi-functional halls, training centers, showroom, broadcasting studios, and industrial automation.
2. Features
☆ With 8 two-way serial ports to connect matrixes, projectors or other A/V devices
☆ With 8 IR outputs/one-way serial ports to connect DVD, TV sets, or other home appliances
☆ With 8 relay ports to control lights, doors or curtains
☆ With 8 digital inputs to receive sensor signals
☆ Capable of connecting with Ethernet-control devices for Ethernet
monitoring and control
☆ IR learning
☆ Provide a superb-performance Web server, supporting on-line firmware
upgrade
☆ Compliant with standard network communication protocols
☆ Password protection against unauthorized accesses
☆ Built-in sync clocks
☆ Standard 1U rack mounting
☆ 220V AC power supply
☆ Support factory reset
3. Package Contents
① 1 × Integrated Controller
② 4 × 3-pin Phoenix Connectors
③ 1 × 4-pin Phoenix Connector
④ 2 × 5-pin Phoenix Connectors
⑤ 4 × 8-pin Phoenix Connectors
⑥ 4 × 9-pin Phoenix Connectors
⑦ 2 × Mounting Ears
⑧ 6 × Machine Screws
⑨ 1 × 220V/10A AC Power Cord
⑩ 1 × User Manual
Note: All relevant information such as pictures, parameters and data provided on the website are for reference only. Please refer to the actual product received for specific specifications, appearance and performance.
