Single-opening flat hexagonal mesh front door;
Single-opening flat hexagonal mesh rear door, optional double-opening flat hexagonal mesh rear door;. Mesh ventilation rate is 75%;
Welding-free reinforcing rib structure of front and rear doors, beautiful and firm;
The front and rear doors are equipped with high-grade elegant locks;
Can be equipped with all kinds of locks required by customers. The front and rear doors can be changed to double opening.
Bearing:
Static load 800 KG (with support)
Degree of protection:
IP20
Main materials:
Square hole strip and mounting beam: anti-fingerprint aluminum-zinc plate;
Others: SPCC high-quality cold-rolled plate;
Thickness: square hole strip: 2.0mm; mounting beam: 1.5mm; others: 1.2mm.
Surface treatment:
· Square hole strip and installation beam: aluminized zinc plate; others: degreasing, silanization treatment and electrostatic plastic spraying
LM-05GJ Cabinet/600 * 800 * 22U
Complies with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1、 DIN41494; PART7、GB/T3047.2-92; Compatible with ETSI standards.
Description
Related products
USB-RJ45 USB 2.0 Extender
The USB-RJ45 is a USB 2.0 extender that can transmit USB 2.0 signals to 100m through a single Cat 5e/6 network cable. It supports USB 2.0 to 1.0 devices with data rates up to 200 Mbps and is compatible with USB 3.0 devices capable of operating at USB 2.0 data rates. The USB-RJ45 supports USB peripherals such as keyboards, mice, mass storage devices, and network cameras in professional video and audio environments. USB-RJ45 uses the latest USB codec chip, so that it has super USB compatibility, supports various USB interface devices, and can transmit USB camera signals without delay, while providing two-way POC power supply.
HD0110 16-Output HDMI 4K Distribution Amplifier
The HD0110 is a 1-input, 16-output distribution amplifier for HDMI signals with resolutions up to 4K × 2K @ 60Hz. They support data rates up to 18 Gbps, 3D and HD lossless audio formats, and feature easy-to-integrate features such as automatic input signal equalization, input signal restoration, output signal amplification, and automatic color depth management. Its EDID Manager and Key Manager technologies maintain continuous EDID communication between connected devices and ensure simultaneous distribution of HDCP-encrypted source content.
4-Output HDMI 4K Distribution Amplifier HD0104
The HD0104 is a 1-input, 4-output distribution amplifier for HDMI signals with resolutions up to 4K × 2K @ 60Hz. They support the HDMI 2.0b parameter standard, including data rates up to 18 Gbps, color depths up to 8 bits (4K) or 12 bits (1080p), 3D, HD lossless audio formats. This HDCP 1.4-compliant distribution amplifier features an EDID manager and a key manager to maintain continuous EDID communication between connected devices and ensure simultaneous distribution of HDCP-encrypted source content.

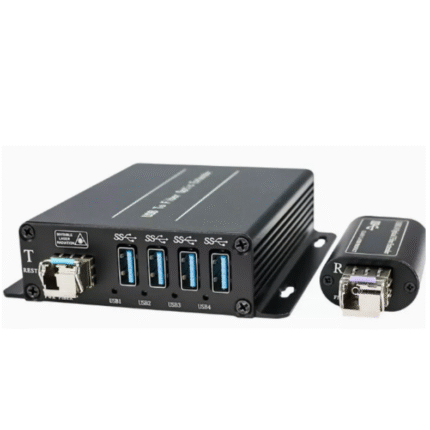

USB optical transceiver USB-FC
