Product features Single-channel HD with loop output 4K30HZ video signal input USB video conforms to UVC 1.0 protocol (3840X 2160 @ 30Hz) default maximum resolution HDMI 1.4b compatible, supports EDID/HPD processing. USB video output resolution 1920X1080 @ 60Hz compatible with Windows 7/8/8.1/10, MacOS, Linuxos system driver-free installation, plug-and-play USB audio conforms to UAC 1.0 protocol. USB video output supports YUV422 and MJPEG modes, USB collects HDMI input audio and video data sources, and also supports HDMI video signal loop-out function, HDCP & HPD processing, EDID customization, audio output, input microphone/line size: 10x7x1.5cm

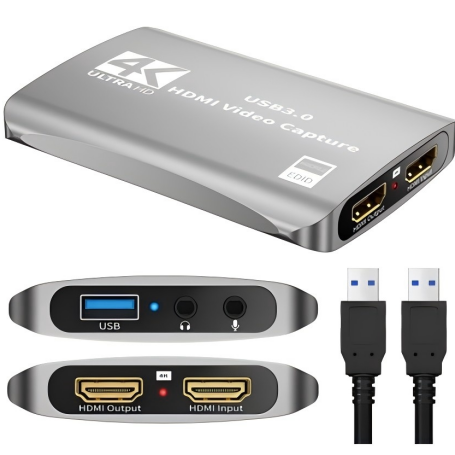

4K capture card LM – 4Kio2K
HDMI 4K 4:4:4 and analog audio capture device with USB3.0 interface to record and generate 2K60 video files
Description
