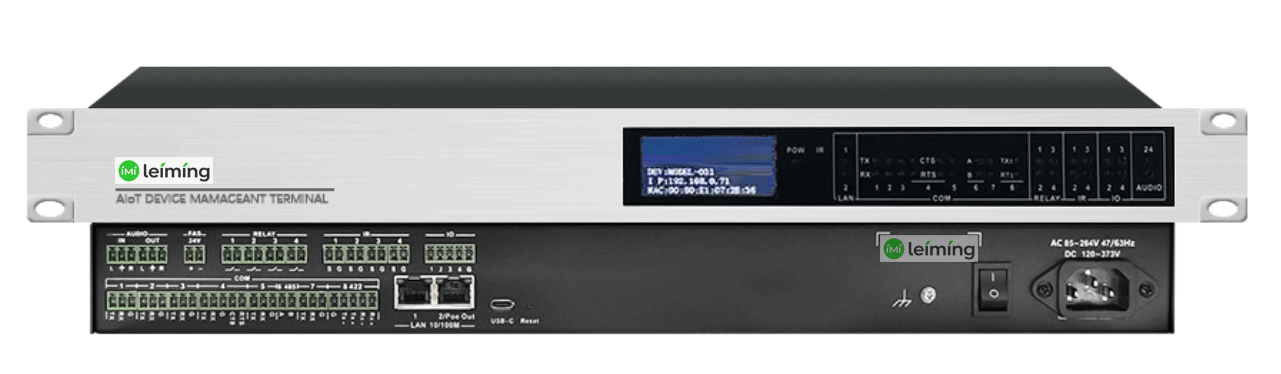

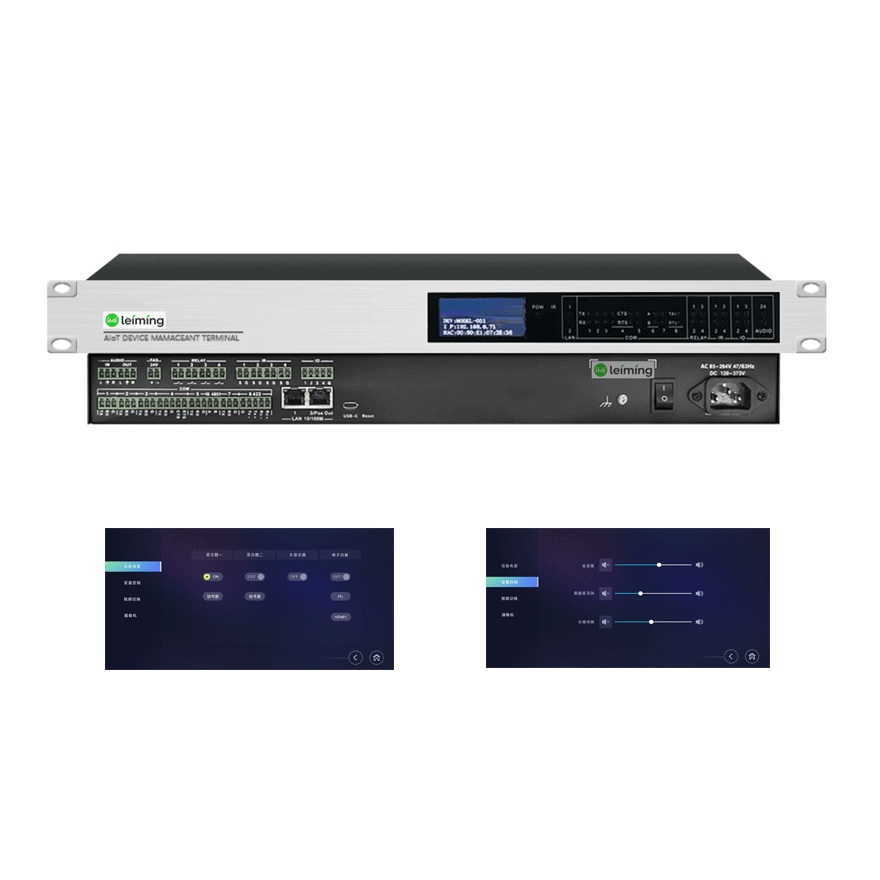

AV Control host Model: LM-1U32
• Utilizing a 64-bit Cortex-A53 MPCore ARM architecture quad-core 2.5GHz microprocessor;
★ Adopting a storage system with a maximum capacity of 64G and supporting up to 256G EMMC FLASH.
★ Capable of multi-platform control, supporting Android, IOS, Windows, HarmonyOS, Kirin, UOS, and Linux-based operating systems;
★ The host supports multi-screen connection, single-screen control, and multi-screen multi-machine connection methods. It has 32 independent Socket servers built-in, allowing for control of up to 32 devices;
★ Supports adding multiple central control programming in the programming interface. Just download the program to the host, without the need to set up the secondary machine;
★ Supports graphical logic programming, and also supports the Lua language code programming method to meet the usage needs of different personnel.
• Various communications: Supports RS-232, RS-422, RS-485, ModBus, TCP service/client, UDP, HTTP, PJLINK, Websocket, and can be extended with Zigbee communication and KNX communication;
• Supports computer network wake-up startup, network shutdown, PPT, system function invocation, Unity3D application, and exhibition hall playback control;
★ Built-in Huawei video terminal API interface. One function can very simply achieve control, and it has message callbacks;
• Possesses two-way communication. Through simple programming, the status of the device can be dynamically displayed;
★ Supports setting the text box in the editing interface to reserve values to display date, time, week, power, and network connection status;
★ Supports directly calling the system message prompt box and message selection box in the control interface, and reserves the callback interface for user selection results, greatly simplifying the powerful interface control effect;
★ The control interface supports dynamic image design, easily achieving first-class cool control experience;
★ Supports virtual running of the interface and real-time control during design;
• Possesses timeline and multi-thread event editing functions;
• Automatic clock timing setting function, which can precisely execute the user-defined time reservation function. The reservation action can be precise to year, month, day, time, and second.
• Can add environmental collectors and sensors such as temperature, humidity, light sensitivity, PM25/PM10, etc.; can automatically trigger instructions according to personal usage habits and external real-time conditions;
• Possesses the ability to query and modify central control information through the network, infrared learning and testing, downloading central control programs, and underlying upgrade without connecting USB cables, making management more convenient;
• Possesses a one-click test infrared function. In the infrared learning process, one-click sends infrared data to all ports for output, avoiding the trouble of poor infrared control in the later use;
★ Built-in powerful lock machine function to prevent illegal cracking methods such as uninstalling batteries, avoiding project payment arrears;
★ Built-in buzzer, which makes a sound when starting;
